Intended use
The brightness controller is used for metering and controlling workspace and room lighting. At the user’s direction, the control can be selected as a switching On/Off control for controlling switch actuators or as a continuous constant light level control for controlling dimming actuators or switch/dimming actuators. The controller has an integrated bus coupling unit with bus connection via a bus terminal. The device is powered from the bus voltage.

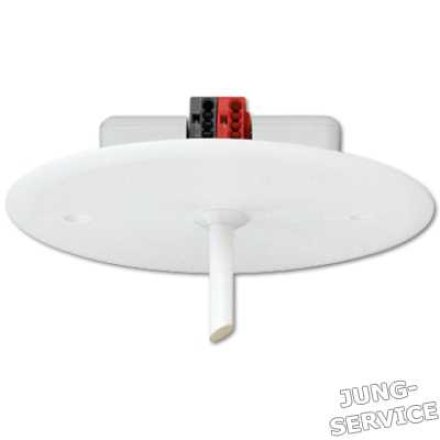

The controller is delivered with two white-painted optical fibre rods (one rod with a plane light-sensitive surface and one rod with an oblique (30°) light-sensitive surface). One of these is plugged in by the user. Normally, the optical fibre rod with the plane light-sensitive surface is to be used. If necessary, the direction of the light-collection cone can be shifted by using the optical fibre rod with the oblique light-sensitive surface.
The brightness sensor and the red blinking commissioning LED are under the optical fibre rod.
- Measurement and control of lighting in interior areas
- Ceiling installation on fixed ceilings
- Installation in wall box according to DIN 49073
The brightness controller is used for metering and controlling workspace and room lighting. At the user’s direction, the control can be selected as a switching On/Off control for controlling switch actuators or as a continuous constant light level control for controlling dimming actuators or switch/dimming actuators. The controller has an integrated bus coupling unit with bus connection via a bus terminal. The device is powered from the bus voltage.
The controller is delivered with two white-painted optical fibre rods (one rod with a plane light-sensitive surface and one rod with an oblique (30°) light-sensitive surface). One of these is plugged in by the user. Normally, the optical fibre rod with the plane light-sensitive surface is to be used. If necessary, the direction of the light-collection cone can be shifted by using the optical fibre rod with the oblique light-sensitive surface.
The brightness sensor and the red blinking commissioning LED are under the optical fibre rod.
|
