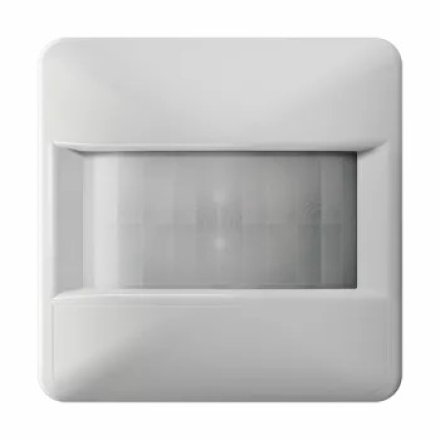

CD3180-1ALG KNX/EIB-датчик движения Комфорт с линзой для установки на высоте 1,1 м; светло-серый
Артикул:
CD3180-1ALG
Наличие:
Под заказ
Поделиться:
for bus coupling unit ref.-no.:
линза для установки на высоте 1,10 м
ETS-семейство изделий: Физические датчики
Тип изделия датчик движения
A slide switch (ON/AUTO/OFF) is integrated.
The device has three potentiometers for time, brightness and sensitivity adjustable from the front side
(time, brightness ± 50% adjustable, basic settings via ETS).
sesitivity approx. 20 ... 100 %
The KNX automatic switch is plugged onto a flush mounted bus coupling unit. It reacts to changes in temperature like people moving into the detection area. This causes switching commands or value transmission to devices such as binary outputs to switch groups of lights or dimming actuators. It can also be used to release a light scene in combination with a light scene push-button. It has three potentiometers for time, brightness and sensitivity adjustable from the front side. A slide switch (ON/AUTO/OFF) is also integrated. The automatic switch has two major modes. There is one for lighting purposes and one for monitoring purposes used for simple alarm detection or in connection with the Central Alarm Unit . By activating a specific object the device can be toggled between these modes.
линза для установки на высоте 1,10 м
ETS-семейство изделий: Физические датчики
Тип изделия датчик движения
A slide switch (ON/AUTO/OFF) is integrated.
The device has three potentiometers for time, brightness and sensitivity adjustable from the front side
(time, brightness ± 50% adjustable, basic settings via ETS).
sesitivity approx. 20 ... 100 %
The KNX automatic switch is plugged onto a flush mounted bus coupling unit. It reacts to changes in temperature like people moving into the detection area. This causes switching commands or value transmission to devices such as binary outputs to switch groups of lights or dimming actuators. It can also be used to release a light scene in combination with a light scene push-button. It has three potentiometers for time, brightness and sensitivity adjustable from the front side. A slide switch (ON/AUTO/OFF) is also integrated. The automatic switch has two major modes. There is one for lighting purposes and one for monitoring purposes used for simple alarm detection or in connection with the Central Alarm Unit . By activating a specific object the device can be toggled between these modes.
