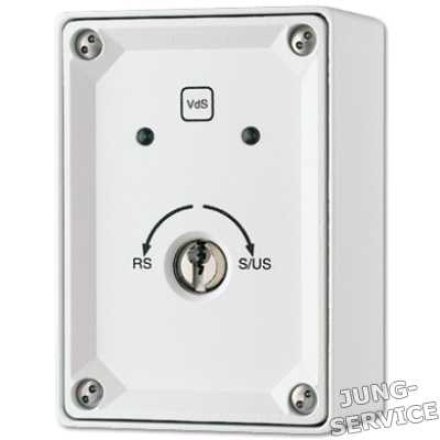

DAS4300A Элемент сигнализации

for activating and deactivating of alarm systems

Housing, front plate: diecast aluminium
Dimensions of housing (W x H x D): 79 x 113 x mm
Colour: white RAL 9010
profile cylinder lock is not included
wired sealed housing for indoor and outdoor use either permanent or pulse contact two LED for individual wiring buzzer for acknowledgement or refusal tear-off and lift-off contact against sabotage protection against drilling
Connecting key switches to :
a) via binary input 8-gang, e.g. ref.-no. or push-button interface
e.g. ref.-no. or to evaluate active/inactive state
b) acknowledge signal (buzzer or LED via switch actuator central unit) 6-gang,
e.g. ref.-no. (12 V DC from central unit)
c) in total min. 6 wires

Номинальное напряжение: 9 ... 15 В DC Номинальное напряжение: 12 B DC Current consumption per LED: approx. 10 mA Current consumption buzzer: около 25 mA Buzzer: buzzer 12 V 85 dBA / 10 cm Permissible load of all contacts: макс. 60 V / 0,5 A Защита: IP 54
