JUNG Service
MBT2424SW Сигнальная панель
Артикул:
MBT2424SW
Наличие:
Под заказ
Поделиться:
ETS product family: Display
Product type: Signal panel

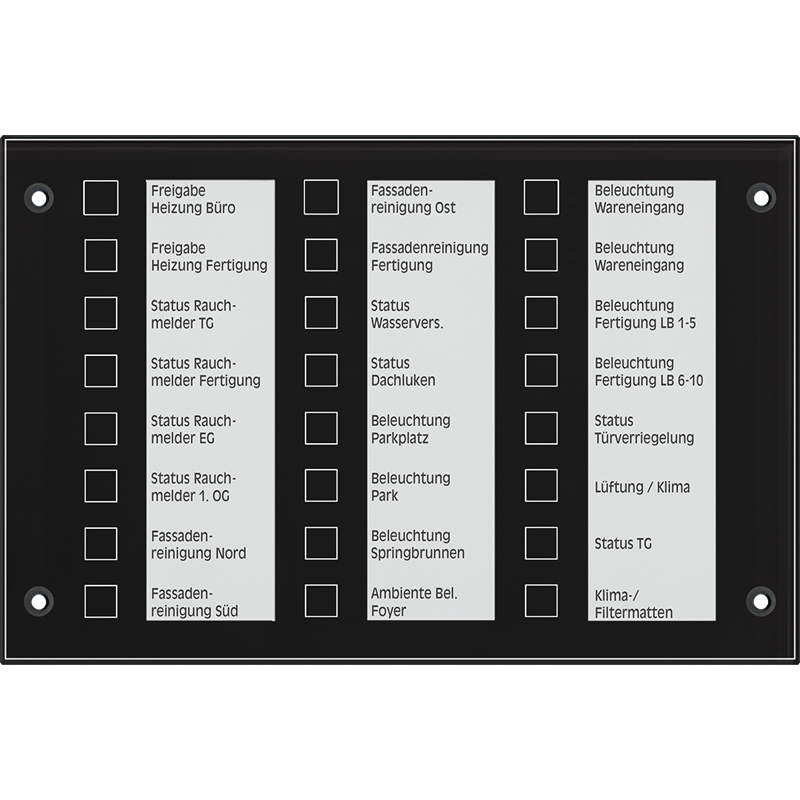

The glass panel with aluminium housing is equipped with 24 capacitive sensor buttons and 24 status LEDs.
The panel enables the control of switching, dimming and push-button functions as well as light scene and value transmitter functions. The LEDs can be separately parameterised to be illuminated in green, red or blue to signalise different situations of the KNX installation. Single sensor buttons, full columns or the entire panel can be blocked with blocking functions. Acoustic signals when pushing the sensor buttons can be parameterised. The surface can be labelled with exchangeable labelling foils, which can be labelled with the JUNG label tool.
The will be installed into a 2-gang wall box or a surface-mounted housing. Programming takes place via ETS. A drilling template and a bit for assembling will be delivered with the device.
Product characteristics
Product type: Signal panel
The glass panel with aluminium housing is equipped with 24 capacitive sensor buttons and 24 status LEDs.
The panel enables the control of switching, dimming and push-button functions as well as light scene and value transmitter functions. The LEDs can be separately parameterised to be illuminated in green, red or blue to signalise different situations of the KNX installation. Single sensor buttons, full columns or the entire panel can be blocked with blocking functions. Acoustic signals when pushing the sensor buttons can be parameterised. The surface can be labelled with exchangeable labelling foils, which can be labelled with the JUNG label tool.
The will be installed into a 2-gang wall box or a surface-mounted housing. Programming takes place via ETS. A drilling template and a bit for assembling will be delivered with the device.
Product characteristics
- Switching, dimming, push-button and blinds control, value transmitter and light scenes
- High quality glass surface with 24 sensor buttons
- Operation via touching the sensor buttons
- Labelling with exchangeable labelling foil
- Status feedback with 24 LEDs; the colours red, green and blue can be configured
- Acoustical feedback for touching sensor
- Fault message on dismantling
- Logic and time functions
- Integrated BCU
- Supply via separate power supply (ref.-no. ) or the auxiliary voltage output of the KNX power supply
