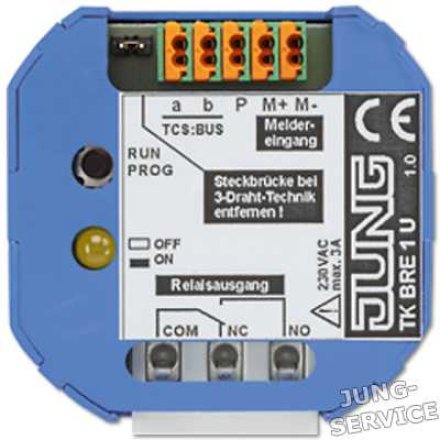

TKBRE1U Универсальное реле с бинарным входом

• Output for switch functions and input to trigger control functions, e.g. optical call indication
• Input evaluates open and close condition
• Input requires the connection of a switch with floating contact
• Following parameters can be adjusted without additional devices:
  factory setting of switching time: 1 second / manually adjustable and via commissioning software
  triggering of switching time by means of: bell buttons of any outdoor station, floor bell button / door release button at any indoor station
• Connection: 2 or 3-wire technique
• Max. 3 devices with 2-wire technique

Тип контактов: floating relay contact Switch type: make/break contact, AC 230 V, 50/60 Hz / 3 A Input current (binary input): 2.5 mA Input current (2-wire): Ia-terminal: 1.5 mA without load Input current (3-wire): Ia-terminal: 0.4 mA IP-terminal: 1.6 mA without load IPmax: 4.4 mA Подключение: M+, M-, a, b, P-terminal: screwless terminals max. diameter: 0.8 mm com, nc, no-terminal: screw terminals max. diameter: 1.4 mm Допустимый диапазон рабочих температур: 20 ... +50 °C Размеры (Ш x В x Г): 52 x 52 x 23 мм
