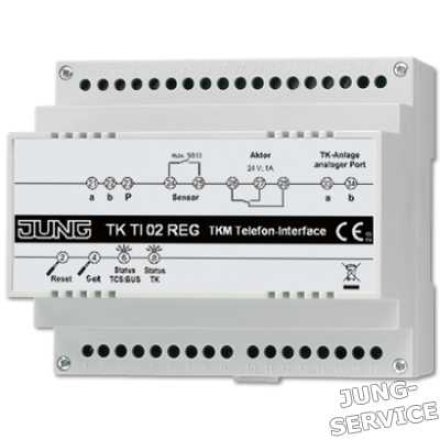

TKTI02REG Контроллер для интеграции телефонии и домофонии
Артикул:
TKTI02REG
Наличие:
Под заказ
Поделиться:
REG-корпус 6 TE
Intended use
Product characteristics
Please note:
Intended use
- For the integration of analogue telephone systems into the JUNG door communication
- Indication of door calls with telephone systems
- Answer door calls with the telephone
- Trigger control functions with the telephone
Product characteristics
- Interface for the integration of telephone systems via analogue a/b port
- Up to 64 telephone numbers with max. 16 digits can be used
- Connects outdoor and indoor stations with the telecommunication network
- Input for a floating contact
- Input can trigger a connection to a separately assigned telephone number
- Communication to 64 outdoor stations via the telephone
- Communication to 3 indoor stations via the telephone
- Up to 10 control functions can be released via the telephone
- Day-/night switch over
- Call diversion
- Potential-free output, make/break contact 24 V DC / 1 A, switch ON time adjustable
- Commissioning with telephone or commissioning software
Please note:
- For commissioning and operation the device must be connected to the analogue port of a telephone system or directly to the outside line.
- The telephone system must transmit the DTMF-tones of a telephone to the analogue port within the speech signal.
- The used button commands must not be used or blocked by the telephone system itself.
- DTMF-tones may not configure the telephone system or release any special function.
- The telephone system must allow internal calls without special characters.
