2041 KNX/EIB-инфо-дисплей; слоновая кость

for bus coupling unit ref.-no.:
ETS product family: Display
Product type: Display

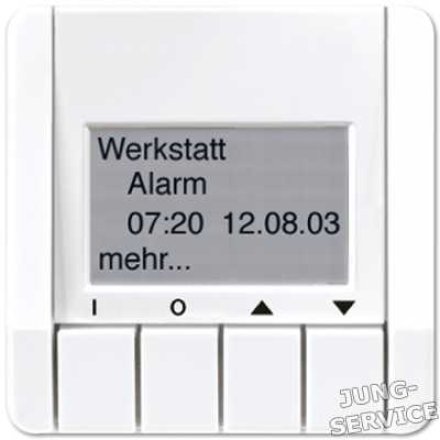

The LCD Info Display receives telegrams by the KNX and offers the possibility of a visual indication (LCD display) of free programmable text and values. Up to 12 pages with 1, 2 or 4 lines can be defined. To each line one function (as switching, dimming, value indication, etc.) can be assigned. On an additional alarm page up to 12 alarm messages can be administrated. To each alarm message, different alarm options as i.e. acoustic signal can be defined. The two keys on the right are used for scrolling up and down through the messages. The two keys on the left are assigned to the display line respectively selected.
Note: For the programming of the device it is required to use at least the ETS 2 version 1.2a !
