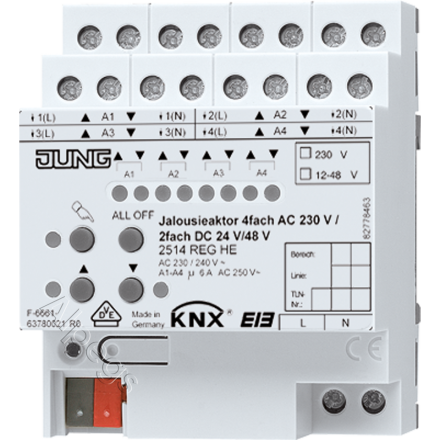

2514REGHE

REG-корпус 4 TE
электронное ручное управление и LED статус
mit Endlagenkorrektur unten
Only with the ETS 3.0d version or later versions the full functionality will be available.
ETS product family: Shutter
Product type: Shutter

Intended use

• Switching of electrically driven Venetian blinds, rolling shutters, awnings and similar hangings for AC 230 V mains voltage or DC 12...48 V extra-low voltage.
• Mounting on DIN rail in distribution boxes

Product characteristics

• Suitable for 230 V AC motors and 12...48 V DC motors
• Automatic operation time detection for 230 V motors can be set
• Slat position directly controllable
• Acknowledgement of travelling state and slat position in bus and manual mode
• Light scene function
• Top and bottom forced position via higher-level controller
• Sun protection function

Outputs: 4 channels AC 230 V, 2 channels DC 12 ... 48 V Power supply mains: AC 230 /240 В ~, 50/60 Гц Подключение: винтовые зажимы     одножильный провод: 0,5 ... 4 мм2     многожильный без клеммника: 0,5 ... 4 мм2     многожильный с клеммником: 0,5 ... 2,5 мм2 Breaking capacity AC1: 6 A (230 V) Switching current DC 12/24 V: 6 A Switching current DC 48 V: 3 A Max. blind/shutter running time: 20 min Потери мощности: макс. 4,5 Вт Диапазон рабочих температур: 5 ... +45 °C Температура хранения: 25 ... +70 °C Тестовый знак: VDE
