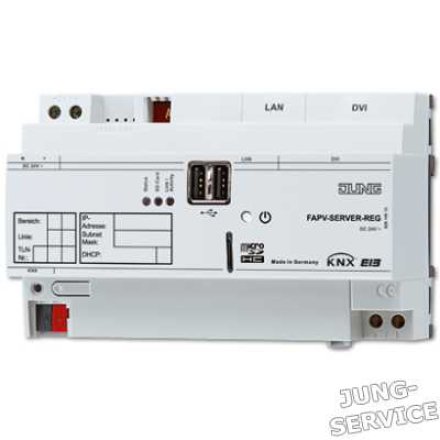

FAPV-SERVER-REG JUNG Facility Pilot server

REG-корпус 8 TE
without display
fanless, without rotating parts

Intended use

• Operation and visualisation of system statuses and information on building automation
• Displaying information services
• Operation with power supply (ref.-no.: )
• Mounting on DIN rail according to EN 60715

Product characteristics

• DIN rail PC with KNX connection
• Operating system: Windows^® Embedded Standard 2009
• Integrated graphics card and network adapter
• Interfaces – accessible from front: Slot for micro SD memory card, 2 x USB (2 x 500 mA)
• Interfaces – accessible from above: Ethernet, DVI, 2 x USB (1 x 500 mA)
• Facility Pilot version for RMD server preinstalled
• Two internal KNX interfaces for simultaneous access to KNX system by local Facility Pilot and remote maintenance from outside

The visualization can be realised in several ways:

• via a monitor (not supplied) connected directly to the DVI-D port
• via devices with Windows XP Professional / Windows 7 and Facility Pilot client connected via LAN
• via mobile devices with HTML5-compatible browser
• KNX-Process connection via the integrated KNX-Data interface

The second KNX-Data interface is used for remote access to the KNX system.

Процессор: AMD G-T40E 1.0 GHz Dual Core (L1 cache 64 kB, L2 cache 512 kB x2) Cooling: passive Разрешение: макс. 1920 x 1200 Memory: 4 GB Flash Card slot: microSD Memory Card, accessible from the front Operating system: Windows Embedded Standard Software: JUNG Facility Pilot full version pre-installed KNX remote maintenance: possible via internet/LAN USB ports: 2 x USB 2.0 on top 2 x USB 2.0 accessible from the front LAN connections: 1 x 1000 Mbit/s Video: 1 x DVI-D Status indicators: operation LED on the front LED for LAN port on the front On/Off push-button: accessible from the front Подключение KNX: KNX bus connection block Напряжение питания: via external power supply 24 V DC, e.g. ref.-no. NT 2415 REG VDC (not included) Номинальное напряжение: 24 В DC Потери мощности: 13 Вт Диапазон рабочих температур: 5 ... +35 °C Температура хранения/транспортировки: 25 ... +70 °C Ширина: 144 мм (8 TE)
