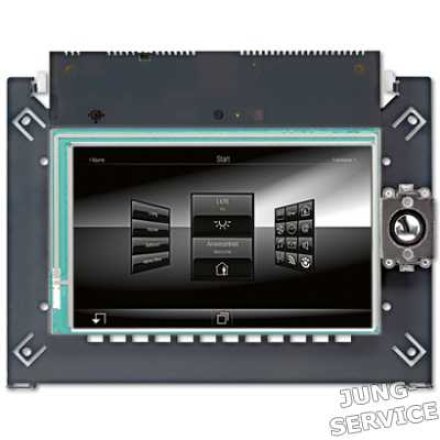

со встроенным шинным сопряжениемaspect ratio 16:9for installation in walls, resistive touch screen
fanless, without rotating parts
The subsequent installation of customer-specific software (Skype, Office applications, camera, softphone, etc.) is not allowed, due to limited storage capacity of the device. Video phone software to connect to the JUNG door communication is not available. The use of the archiving function requires the use of external storage media.
Intended use- Operation and visualisation of system statuses and information on building automation
- Displaying information services
- Flush-mounted installation in interior areas
Product characteristics- Illuminated graphic colour screen TFT, 800 x 480 pixels, 16.7 million colours
- Touchscreen
- Operating system: Windows® Embedded Standard 2009
- Integrated camera
- Integrated loudspeaker
- Integrated microphone
- KNX Interface
- Interfaces accessible from front: 1 x USB, 1 x SD memory card
- Interfaces accessible from rear: 2 x USB, Ethernet, stereo audio-in, stereo audio-out, video-in
- Graphical user interface for visualization and operation of KNX devices
- 50 Rume
- 10 Gewerke
- 240 Funktionen, z.B.:
– Szenenaufrufe: max. 40
– Meldeanlage: max. 40 Melder (Innenraum und Auenhaut zusammen)
– Datenlogger: max. 20 Datenloggerkanle
– Logikgatter: max. 80 Gatter mit je bis zu 8 Eingngen und einem Ausgang
– Zeitglieder: max. 40
– Grenzwertmodule: max. 40
– Demultiplexer "1 zu 2" und "1 zu 4": je max. 7
– Schaltuhr: max. 64 Schaltuhrkanle mit insgesamt 128 Schaltzeiten
– Szenen: max. 24 Szenen, max. 32 Szenenfunktionen
– Anwesenheitssimulation: max. 8 Simulationen, max. 32 Funktionen (je Simulation 15 Funktionen)
– Strmeldungen: max. 50
– Ereignis-E-Mails: max. 50
– Videonachrichten: max. 8
– Systemzeit: max. 40
Neue Funktionen:- Vordefinierte grafische Benutzeroberflche
- Freie grafische Benutzeroberflche
- Kombination von vordefinierter und freier Benutzeroberflche
- Masterseiten: max. 10
- Freie Seiten: max. 50
- Elemente: max. 400
- Copy & Paste-Funktionen
- Remote-Funktionalitt
- Schnellzugriff auf Seiten und Funktionen
- bernahme der Projektfunktionen zwischen und
Flush-mounted recessed box: ref.-no.: EBG 24
Технические характеристики
Питание | | напряжение питания: | AC 110 ... 230 В ~, 50/60 Гц | Fine-wire fuse: | Littelfuse/Wickmann 372 1160 T 1.6 L 250 | потребление в режиме ожидания: | макс. 1 Вт | потребляемая мощность: | макс. 20 Вт | Power consumption (Display off): | макс. 8 Вт | Условия окружающей среды | | диапазон рабочих температур: | 0 ... +35 °C | температура хранения/транспортировки: | 10 ... +70 °C | относительная влажность: | 15 ... 85 % (без конденсата) | степень защиты: | II | System | | Процессор: | Intel® AtomTM Z510, 1.1 GHz | L2 cache: | 512 kB | System chipset | Intel System-Controller Hub US15W | память ПЗУ: | 2 GB SSD | память ОЗУ: | 1 GB RAM | аудио контроллер: | Realtek ALC888 | Диагональ экрана: | 229 mm / 9’’, aspect ratio 16:9 | Разрешение: | WVGA (800 x 480) | Количество цветов: | 16,7 миллионов | Угол обзора: | ± 85° | Touchscreen: | resistive | Камера | | разрешение: | 1.3 milion pixels | Терминалы | | аудио выход: | Line-out (Stereo) | аудио вход: | line-in (stereo) | видео вход: | FBAS/CVBS 1 Vss | Slot of memory card: | SDHC, max. 32 GB | USB | | USB version: | 1.1/2.0 | подключение: | 3 x type A | Service interface | | подключение: | Mini-USB type AB, 5-pole | Network | | тип: | 10/100 Mbit/s Ethernet | подключение: | RJ45 socket8/4-pin | Размеры (Ш x В x Г): | 283 x 117 x 65 mm (without design frame) | Dimensions screen (W x H): | 195 x 118 мм | Напряжение питания KNX: | DC 21 ... 32 В SELV | Потребляемая мощность KNX: | typical 150 mW | Connection mode KNX: | клеммы | |
